Filtration Systems

- Capacities: 10 – 4.500 m³/hour

- Connection sizes: DN 125 – DN 600

- Filter fineness: 25 µ - 10 mm

- Construction length: 1.500 – 3.500 mm

- Drum Diameters: 800 – 1.200 – 1.600 – 2.000 mm

- Set-up: In-line or Bypass

- Operating pressure: Hydraulic

                                                                              - Moving parts: Rotating drum with low speed

Automatic Disc Scrape Filters

- Function: Liquid-Solids-Separation

- Capacities: Depend on factors such as filter fineness

- Connection sizes: Custom-made

- Filter fineness: 0,5 µ - 3 mm

- Construction height: +/- 2.900 mm

- Set-up: In-line or Bypass

- Operating pressure: Standard 0 – 10 bar

- Pressure loss: Flow and filter fineness related

- Moving parts: Scraper

Hydraulic Selfcleaning Filters

- Function: Liquid-Solids-Separation

- Capacities: 24 – 188 m³/hour at 120 µ and clean water

- Connection sizes: 2 ” BSP – DN 80

- Filter fineness: 25 µ - 500 µ

- Construction size: 480 – 1.345 mm

- Set-up: In-line or Bypass

- Operating pressure: Standard 2 – 10 bar

- Set-up: Electric or hydraulic motor for cleaning purposes

- Moving parts: Rotating dirt trap

Selfcleaning Suction Screens

- Function: Liquid-Solids-Separation

- Capacities: 18,5 – 650 m³/hour

- Connection sizes: 3 ” – 12 ”

- Filter fineness: 0,6 – 1,0 – 2,5 mm

- Construction height: 395 – 1.055 mm

- Set-up: At the end of the suction line of the pump

- Operating pressure: At least 3,2 bar

- Pressure loss: Minimum

- Moving parts: Suction strainer, double bearing

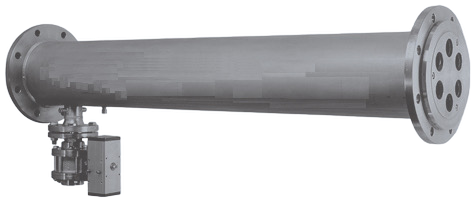

 Axial Edge Filters

 - Function: Liquid-Solids-Separation

 - Capacities: 25 – 4.000 m³/hour

 - Connection sizes: DN 100 – DN 600

 - Filter fineness: 250 µ - 3 mm

 - Construction length: 650 – 1.420 mm

 - Set-up: In-line

 - Operating pressure: Standard 2 – 10 bar

                                                                              - Pressure loss: 0,1 – 2 bar

                                                                              - Moving parts: No, except purge valve

 Amkco Vibra Screens

- Function: Liquid-Solids-Separation or Solids-Solids-Separation

- Capacities: Depends on many factors

- Connection sizes: Inlet 100 - 300 mm and Outlet 100 - 250 mm

- Filter fineness: 20 µ bis 20 mm

- Construction size: Irrelevant

- Set-up: Screen diameter of 450 - 1800 mm

- Operating pressure: Pressureless

- Set-up: Electric Motor

- Moving parts: 1 or more screens

Selfcleaning Wedgewire Strainers

- Function: Liquid-Solids-Separation

- Capacities: 0 – 105 m³/hour at 100 µ and clear water

- Connection sizes: 1 ” BSP – DN 100

- Filter fineness: 25 µ - 3 mm

- Construction size: 810 – +/- 1.800 mm

- Set-up: In-line or Bypass

- Operating pressure: Standard 0 – 10 bar

- Application: Also suitable for viscous liquids

- Moving parts: Rotating filter element
